Technology Ultra High Capacity Elevator

The construction of high-rise buildings has been busily advancing in recent years as construction technology advances. As buildings grow taller, so the need for elevators with higher capacities and faster speeds grows to move more passengers to their destination floors in a single go.

Izumi Garden
Izumi Garden
Roppongi Hills
Roppongi Hills
TAIPEI101
TAIPEI101

Toshiba Elevator has adapted to the market’s needs to secure handling capacity with examples like Izumi Garden in Roppongi Tokyo in 2001 (75 persons capacity/speed of 240m/min) and the double-decker elevator of Roppongi Hills in 2003.
Also, in 2004, we delivered the world's fastest elevator at that time (rated speed of 1,010m/min) to the TAIPEI101 in Taiwan.

Sumitomo Fudosan Roppongi Grand Tower
Sumitomo Fudosan Roppongi Grand Tower

Despite the opinion that elevators are approaching their maximum speed limit, we have made deliveries, such as Tokyo SkyTree and the Shanghai World Financial Center, that answer the need for even faster speeds and higher capacities.
We have also delivered a high capacity (Japan’s highest capacities at 90 persons) and faster speed elevator (300m/min) to the Sumitomo Fudosan Roppongi Grand Tower that opened in Tokyo in 2016.

This high cpacity/high speed elevator is the shuttle elevator that travels at high speed between the station lobby on the 1st floor, and the sky lobby on the 29th floor. Passengers can exit this elevator on the lobby floors to board local elevators to reach efficiently their destination floors.

Travel in a high rise building using a high cpacity / high speed shuttle elevator

※Image

The shuttle elevator moves between the lobby floors at high speed. To travel to their destination floor, passengers transfer to a local elevator on a lobby floor. By linking high capacity/high speed shuttle elevators with local elevators, allows for efficient travel within a high rise building.

Travel in a high rise building using a high cpacity / high speed shuttle elevator

Traction machine and brake

High cpacity shuttle elevators utilize high output permanent magnet synchronized motors as well as a high capacity traction machines with two windings. Additionally, through the use of brakes that are only tens of kilograms in weight per machine and caliper electromagnetic brakes that use multiple small brakes, the traction machine has been made smaller and more light weight as well as easier to maintain.

Safety devices

A double-safety method has been used where upper and lower safety devices have been installed to halt the high capacity/high speed car in emergencies (conventional elevators use only lower safety devices). This has allowed approximately twice the braking force without increasing the size of the safety devices.

Delivery

High cpacity / high speed shuttle elevator (office)

Comparison of cars for 90-persons elevator and conventional 15-persons elevator

As elevators grow in capacity, the cars become heavier as more passengers are carried.

Through the use of a honeycomb core floor panels, a high degree of rigidity is maintained while the overall weight of the car is lightened. This reduces the burden on the traction machine. 1/5 the weight of steel floors panels has be achieved (in-house comparison)

90 person; 300m/min speed;
4 elevators; 2016

75 person; 240m/min speed;
4 elevators; 2002

40 person; 600m/min speed;
4 elevators; 2012

60 person; 240m/min speed;
4 elevators; 2014

Double-decker elevator with inter floor adjustment function

By having a double-deck car, the transport capacity rises by approx. 190% during peak hours.
The inter floor adjustment function allows the double-decker elevator to be adapted to buildings with varying service floor heights.
Click here for more details on the double-decker elevator

22 person; 360m/min speed;
6 elevators; 2003

18 person; 300m/min-- 210m/min speed;
4 elevators; 2008

24 person; 300m/min fixed speed;
22 person; 150m/min rated speed;
6 elevators; 2014

Our installation examples are available to be viewed in slideshow format.

You can see our installation examples in the following order: Tokyo SkyTree, Shanghai World Financial Center, Abeno Harukas, Sumitomo Fudosan Roppongi Grand Tower, and Izumi Garden.

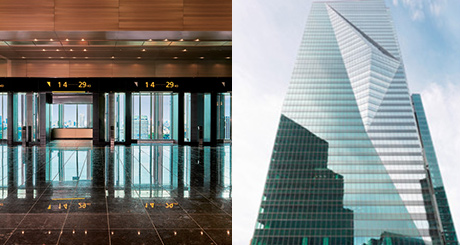

Sumitomo Fudosan Roppongi Grand Tower Sumitomo Fudosan
