Design SelectionOther Optional Items

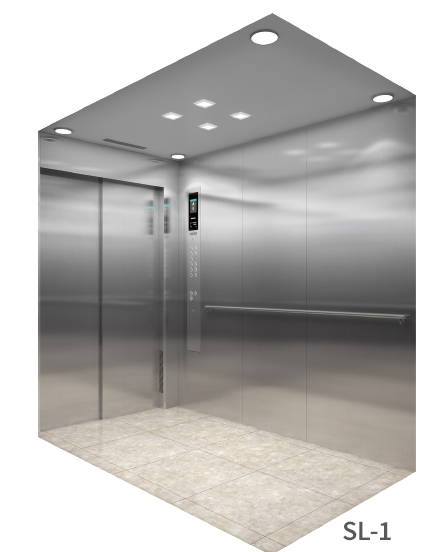

OPTIONAL Hand rail
![Hand rail](/elv/infoeng/common2020/img/products/designselection/06/p-01.jpg)

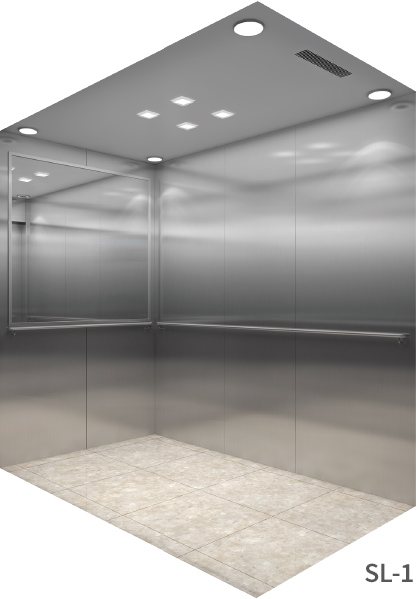

OPTIONAL Mirror
Mirror made of glass
![Mirror](/elv/infoeng/common2020/img/products/designselection/06/23_p-02.jpg)

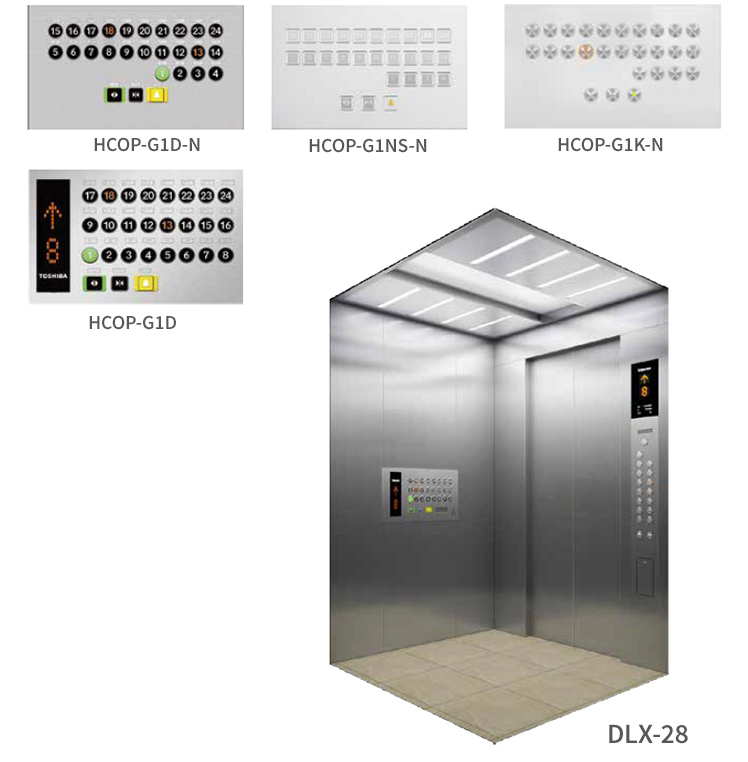

OPTIONAL HCOP
Additional installation car operation panel at a low position in the center of the car side panel.
![HCOP](/elv/infoeng/common2020/img/products/designselection/06/23_p-03.jpg)
OPTIONAL Elevator for medical facilities
Car size suitable for transporting stretchers
Recommended specifications
Type | Nos. of Person | Capacity(kg) | Cage size Internal (WxD) (mm) |
Door width W (mm) |
Door height h (mm) |
|
---|---|---|---|---|---|---|
P17-2S |
D |
17 |
1275 |
1200×2300 |
1100 |
2100 |
P21-2S |
D |
21 |
1600 |
1400×2400 |
1200 |
2100 |
Note: The above scope complies with GB7588:2003 standard
Ceiling design |
DLC-1 ※Double entrance |
---|---|
Car side panel |
Hairline finish stainless steel |
Kick plate |
Hairline finish stainless steel |
Car door(Front) |
Hairline finish stainless steel |
Car door(Back) |
Hairline finish stainless steel |
Car floor |
Vinyl tile (MID809) |
COP(Front) |
COP-G1L-57B |
COP(Back) |
COP-G1L-57B |
Indicator |
5.7 inch Color LCD |
Handrail |
Stainless steel flat type |
![Elevator for medical facilities](/elv/infoeng/common2020/img/products/designselection/06/23_p-04.jpg)

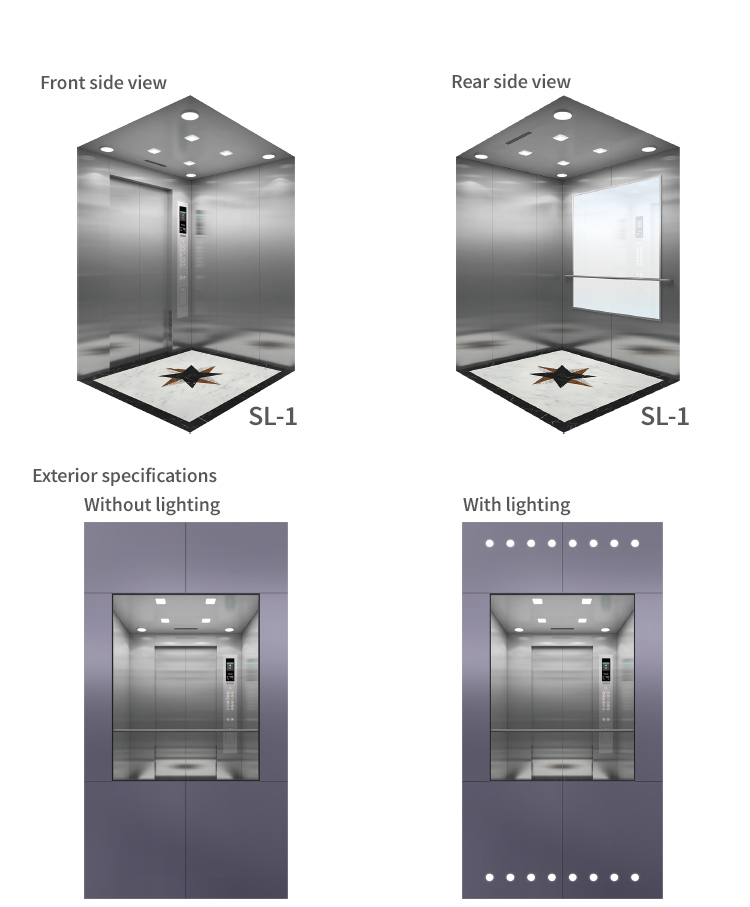

OPTIONAL Simplified observation elevator
Car interior specifications
![Simplified observation elevator](/elv/infoeng/common2020/img/products/designselection/06/23_p-05.jpg)
OPTIONAL Parking switch
![Parking switch](/elv/infoeng/common2020/img/products/designselection/06/p-06.jpg)
OPTIONAL Fireman switch
Applied to Fireman switch for “Fireman’s operation” in case of provided safety functions
![Fireman switch](/elv/infoeng/common2020/img/products/designselection/06/p-07.jpg)

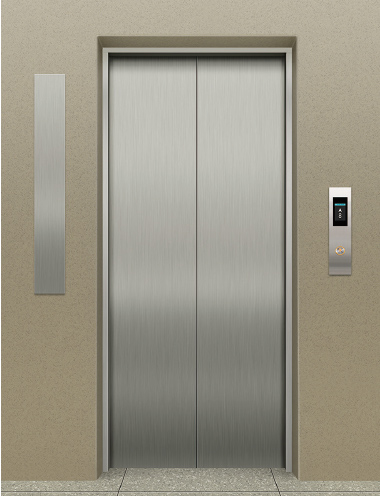

STANDARD Hall Emergency Operationg Panel
Emergency operating device installed at the entrance on the top floor
※Note : Applies to Machine-Room-Less elevator type only.
![Hall Emergency Operationg Panel](/elv/infoeng/common2020/img/products/designselection/06/23_p-08.jpg)

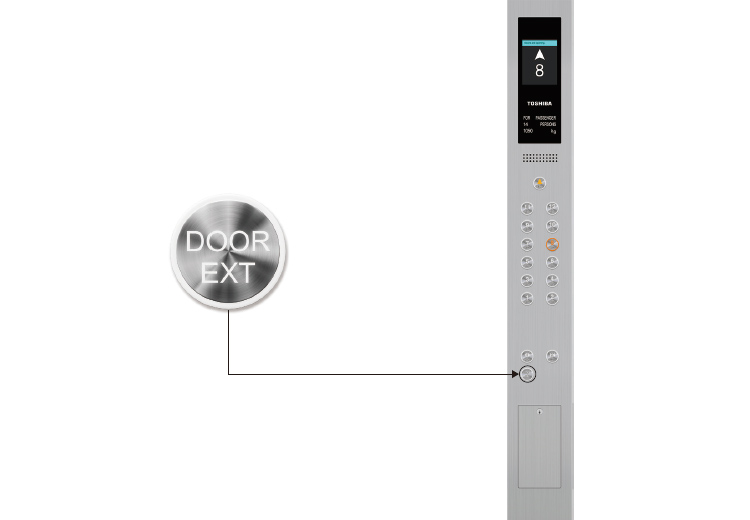

OPTIONAL Door open extension button
Even if it holds a door neither by the hand nor a thing,
when taking a load in and out by move etc. by making a door open state hold, work is made to be done smoothly.
![Door open extension button](/elv/infoeng/common2020/img/products/designselection/06/23_p-09.jpg)
