Design SelectionCar Design

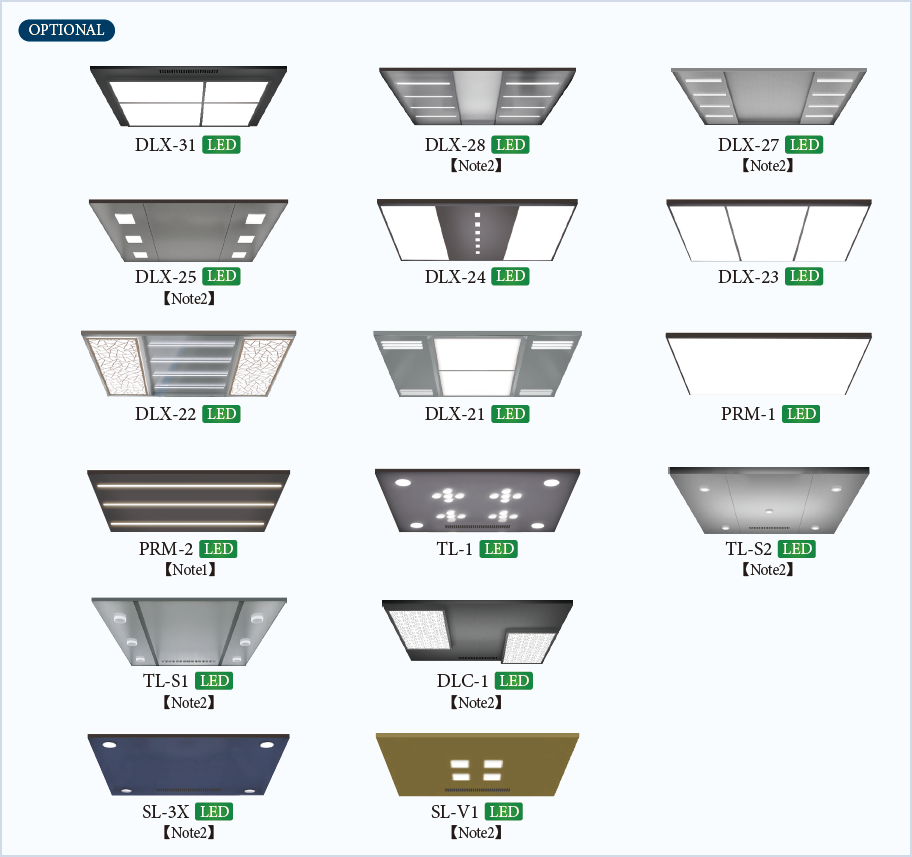

Expansion of variations in car ceiling design

Suitable for harmonization of a wide variety for building applications and concepts.
Expanding the lineup of ceiling designs utilizing LED lighting
All ceiling lighting uses LED lighting to take environmental measures such as long life and energy saving.

STANDARD

OPTIONAL

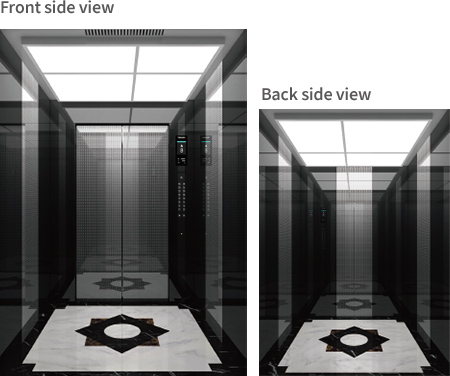

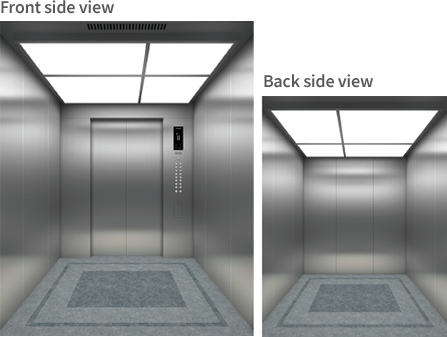

OPTIONAL DLX-31

DLX-31

OPTIONAL

DLX-31
Ceiling design

DLX-31

Car side panel
(Return panel)

Black color hairline finish stainless steel

Car side panel
(Side panel)

Black color hairline finish stainless steel
and Mirror etching finish stainless steel

Car side panel
(Rear panel)

Black color hairline finish stainless steel
and Mirror etching finish stainless steel

Kick plate

Nil

Car door

Mirror etching finish stainless steel

Car floor

Marble(JQ-1012)

COP

POP-G1L-84C

Indicator

8.4 inch LCD

Handrail

Nil

DLX-31

OPTIONAL

DLX-31
Ceiling design

DLX-31

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Vibration finish stainless steel

Car side panel
(Rear panel)

Vibration finish stainless steel

Kick plate

Nil

Car door

Vibration finish stainless steel

Car floor

Vinyl tile (TSF-1C)

COP

POP-G1NS

Indicator

7.0 inch LCD

Handrail

Nil

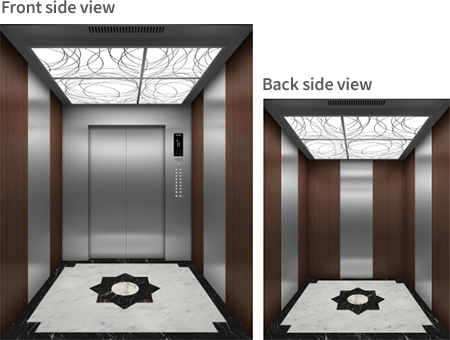

DLX-31

OPTIONAL

DLX-31
Ceiling design

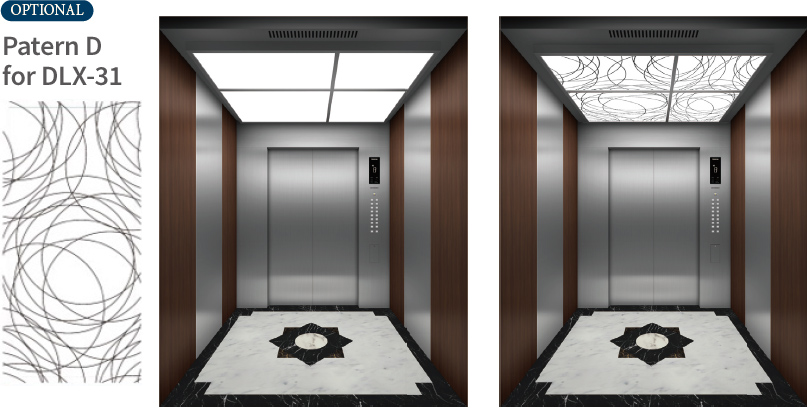

DLX-31 with patern D

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Vibration finish stainless steel
Adopted decorative sheet (Decorative film) by other works.

Car side panel
(Rear panel)

Vibration finish stainless steel
Adopted decorative sheet (Decorative film) by other works.

Kick plate

Nil

Car door

Vibration finish stainless steel

Car floor

Marble(JQ-1012)

COP

POP-G1NS

Indicator

7.0 inch LCD segment

Handrail

Nil

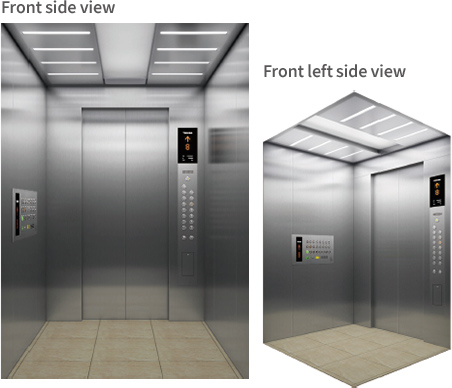

OPTIONAL DLX-28

DLX-28

OPTIONAL

DLX-28
Ceiling design

DLX-28

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile(MID809)

COP

COP-G1F

HCOP

HCOP-G1D

Indicator

LED Dot matrix(Orange color)

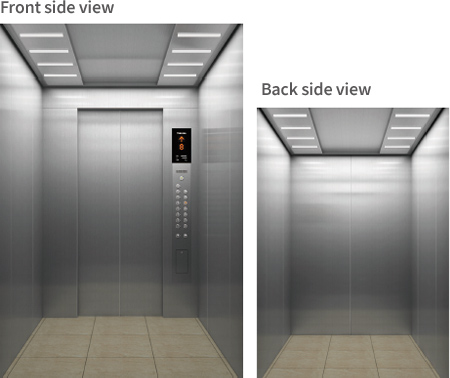

OPTIONAL DLX-27

DLX-27

OPTIONAL

DLX-27
Ceiling design

DLX-27

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile(MID809)

COP

COP-G1N

Indicator

LED Dot matrix(Orange color)

Handrail

Nil

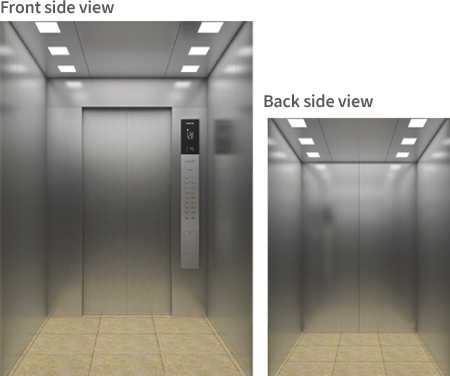

OPTIONAL DLX-25

DLX-25

OPTIONAL

DLX-25
Ceiling design

DLX-25

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile(MID809)

COP

COP-G1N-70S

Indicator

7.0 inch LCD segment

Handrail

Nil

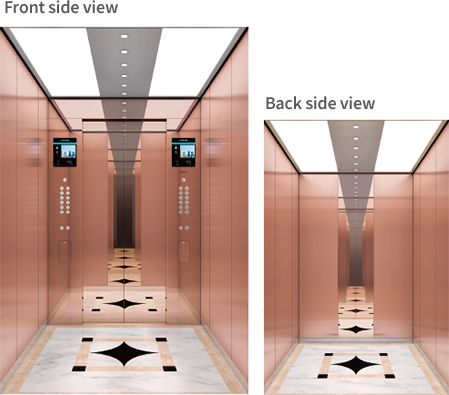

OPTIONAL DLX-24

DLX-24

OPTIONAL

DLX-24
Ceiling design

DLX-24

Car side panel
(Return panel)

Bronze color mirror finish stainless steel

Car side panel
(Side panel)

Bronze color hairline finish stainless steel
and Bronze color mirror finish stainless steel

Car side panel
(Rear panel)

Bronze color hairline finish stainless steel
and Bronze color mirror finish stainless steel

Kick plate

Hairline finish stainless steel

Car door

Bronze color mirror finish stainless steel

Car floor

Marble tile (JRFL002)

COP

POP-G1L-104C

Sub-COP

POP-G1L-104C

Indicator

10.4 inch LCD

Remark

Applies to models with a capacity of 1150kg
or more.

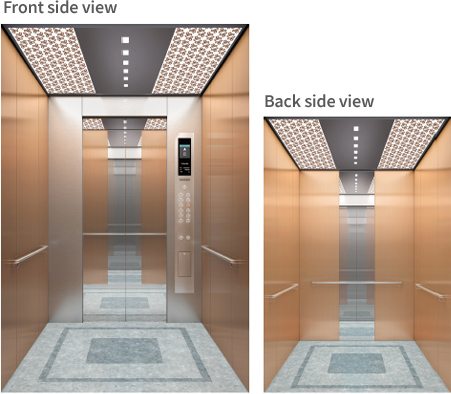

DLX-24

OPTIONAL

DLX-24
Ceiling design

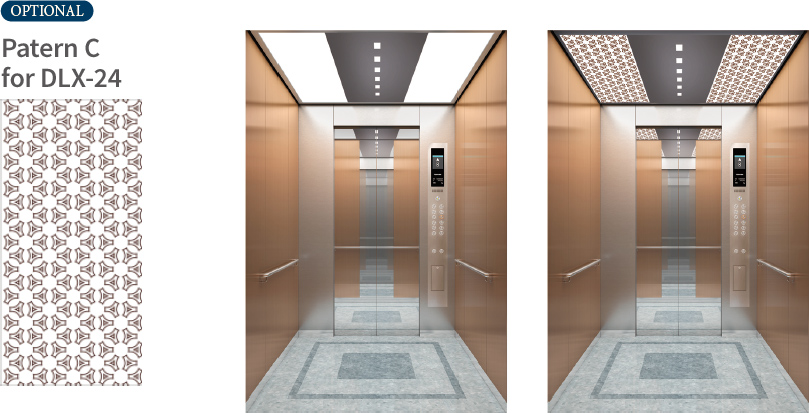

DLX-24 with patern C

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Rose gold color hairline finish stainless steel

Car side panel
(Rear panel)

Rose gold color hairline finish stainless steel
and Mirror finish stainless steel

Kick plate

Nil

Car door

Mirror finish stainless steel

Car floor

Vinyl tile (TSF-1C)

COP

COP-G1L-57B

Indicator

5.7inch LCD

Handrail

Stainless steel round type hand rail

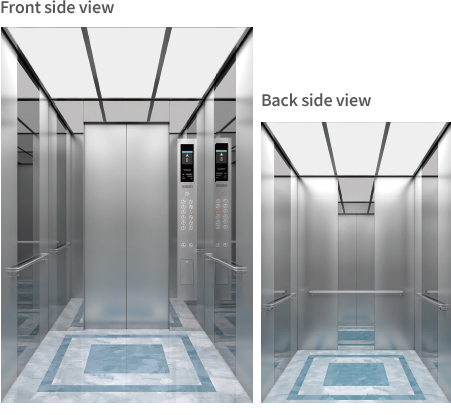

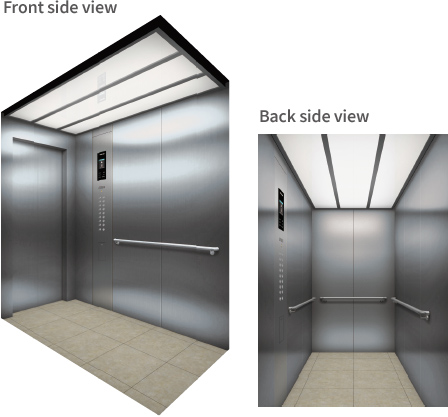

OPTIONAL DLX-23

DX-23

OPTIONAL

DX-23
Ceiling design

DLX-23

Car side panel
(Return panel)

Mirror finish stainless steel

Car side panel
(Side panel)

Sand blast finish stainless steel
and Mirror finish stainless steel

Car side panel
(Rear panel)

Sand blast finish stainless steel
and Mirror finish stainless steel

Kick plate

Nil

Car door

Sand blast finish stainless steel

Car floor

Vinyl tile (TSF-1C)

COP

COP-G1L-57B

Indicator

5.7inch LCD

Handrail

Stainless steel round type hand rail

DLX-23

OPTIONAL

DLX-23
Ceiling design

DLX-23

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Vibration finish stainless steel

Car side panel
(Rear panel)

Vibration finish stainless steel

Kick plate

Nil

Car door

Vibration finish stainless steel

Car floor

Vinyl tile (MID823)

COP

FCOP-G1L-57B

Indicator

5.7inch LCD

Handrail

Stainless steel round type hand rail

OPTIONAL DLX-22

DLX-22

OPTIONAL

DLX-22
Ceiling design

DLX-22

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Vibration finish stainless steel
and Mirror finish stainless steel

Car side panel
(Rear panel)

Vibration finish stainless steel
and Mirror finish stainless steel

Kick plate

Nil

Car door

Mirror finish stainless steel

Car floor

Marble(JQ-1013)

COP

POP-G1L-57B

Indicator

5.7 inch LCD

Handrail

Nil

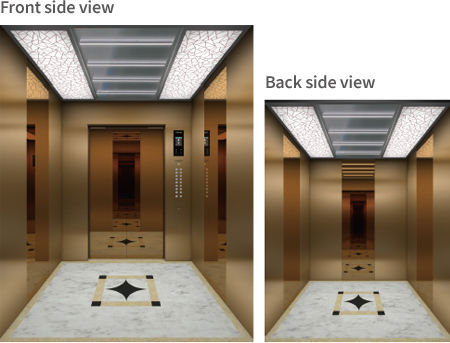

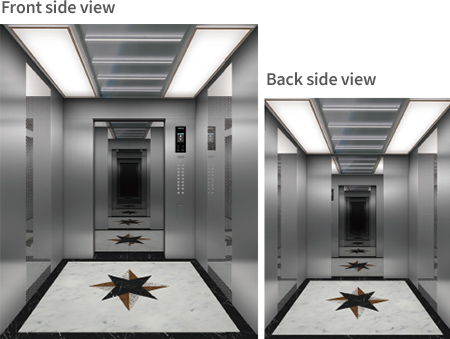

DLX-22

OPTIONAL

DLX-22
Ceiling design

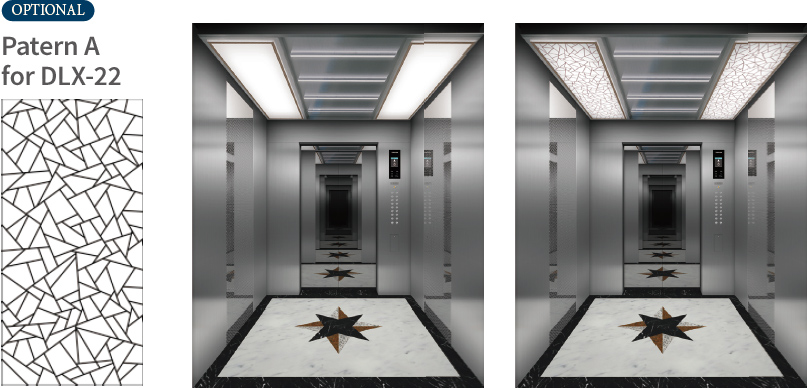

DLX-22 with patern A

Car side panel
(Return panel)

Gold color hairline finish stainless steel

Car side panel
(Side panel)

Gold color hairline finish stainless steel
and Gold color mirror finish stainless steel

Car side panel
(Rear panel)

Gold color hairline finish stainless steel
and Gold color mirror finish stainless steel

Kick plate

Nil

Car door

Gold color mirror finish stainless steel

Car floor

Marble(JQ-1012)

COP

POP-G1L-57B

Indicator

5.7 inch LCD

Handrail

Nil

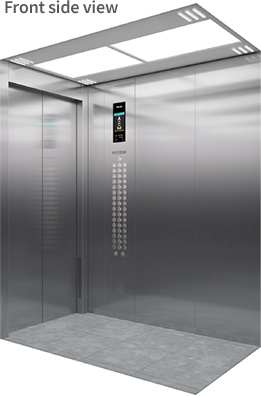

OPTIONAL DLX-21

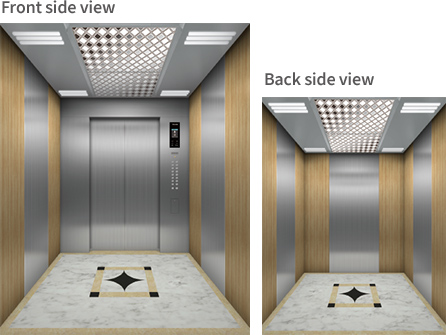

DLX-21

OPTIONAL

DLX-21
Ceiling design

DLX-21

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Hairline finish stainless steel

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (MID806)

COP

FCOP-G1L-84C

Indicator

8.4 inch LCD

Handrail

Nil

Remark

Applies to models with a capacity of 1150kg or more.

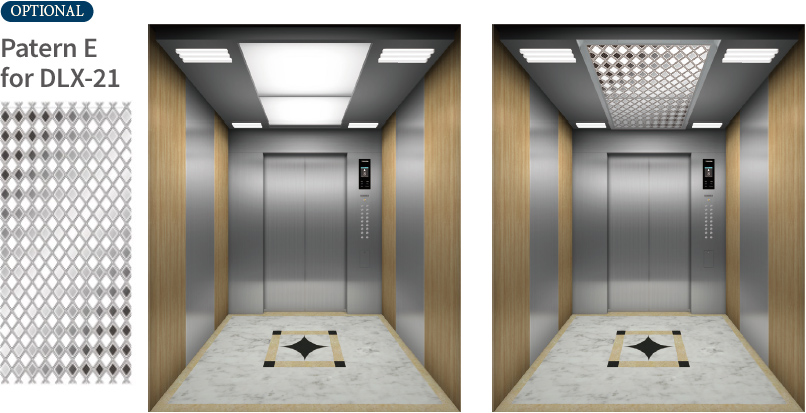

DX-21

OPTIONAL

DX-21
Ceiling design

DLX-21 with patern E

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Vibration finish stainless steel
Adopted decorative sheet (Decorative film) by other works.

Car side panel
(Rear panel)

Vibration finish stainless steel
Adopted decorative sheet (Decorative film) by other works.

Kick plate

Nil

Car door

Vibration finish stainless steel

Car floor

Marble(JQ-1012)

COP

POP-G1L-84C

Indicator

8.4 inch LCD

Handrail

Nil

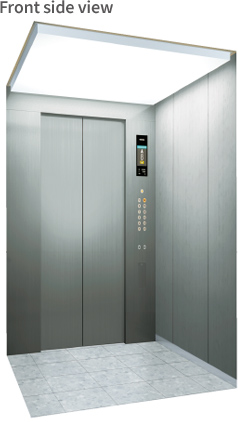

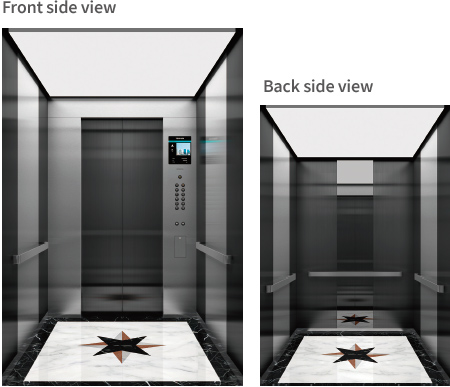

OPTIONAL PRM-1

PRM-1

OPTIONAL

PRM-1
Ceiling design

PRM-1

Car side panel
(Return panel)

Satin finish stainless steel

Car side panel
(Side panel)

Satin finish stainless steel

Car side panel
(Rear panel)

Satin finish stainless steel

Kick plate

Hairline finish stainless steel

Car door

Satin finish stainless steel

Car floor

Vinyl tile (MID-833)

COP

POP-G1L-84C

Indicator

8.4inch LCD

Handrail

Stainless steel flat type hand rail

Remark

Applies to models with a capacity of 1150kg or more.

PRM-1

OPTIONAL

PRM-1
Ceiling design

PRM-1

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Black color hairline finish stainless steel
and Vibration finish stainless steel

Car side panel
(Rear panel)

Black color hairline finish stainless steel
and Vibration finish stainless steel

Kick plate

Hairline finish stainless steel

Car door

Black color hairline finish stainless steel

Car floor

Marble tile (JQ-1013)

COP

POP-G1L-104C

Indicator

10.4inch LCD

Handrail

Stainless steel flat type hand rail

Remark

Applies to models with a capacity of 1150kg or more.

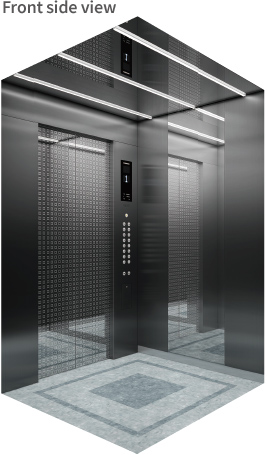

OPTIONAL PRM-2

PRM-2

OPTIONAL

PRM-2
Ceiling design

PRM-2

Car side panel
(Return panel)

Black color hairline finish stainless steel

Car side panel
(Side panel)

Black color hairline finish stainless steel
and Mirror finish stainless steel

Car side panel
(Rear panel)

Black color hairline finish stainless steel

Kick plate

Hairline finish stainless steel

Car door

Mirror etching finish stainless steel

Car floor

Vinyl tile (TSF-1C)

COP

POP-G1L

Indicator

LED Dot matrix (White color)

Handrail

Nil

Remark

Applies to models with a capacity of 1150kg or more.

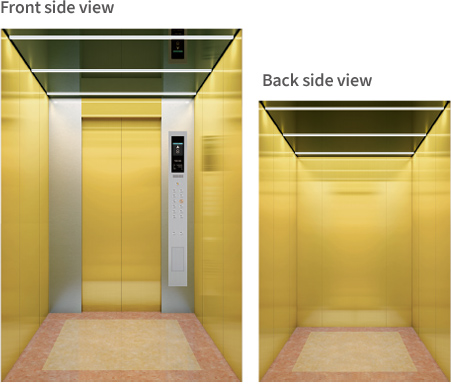

PRM-2

OPTIONAL

PRM-2
Ceiling design

PRM-2

Car side panel
(Return panel)

Vibration finish stainless steel

Car side panel
(Side panel)

Gold color hairline finish stainless steel

Car side panel
(Rear panel)

Gold color hairline finish stainless steel

Kick plate

Nil

Car door

Gold color hairline finish stainless steel

Car floor

Vinyl tile (TSF-1A)

COP

COP-G1L-57B

Indicator

5.7 inch LCD

Handrail

Nil

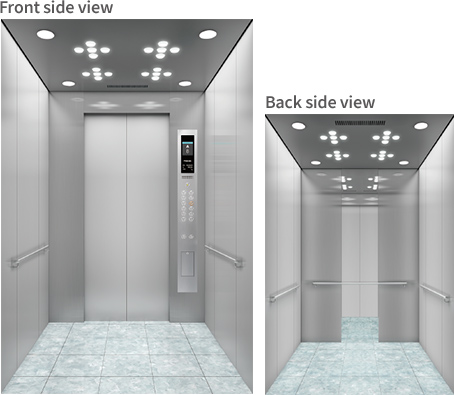

OPTIONAL TL-1

TL-1

OPTIONAL

TL-1
Ceiling design

TL-1

Car side panel
(Return panel)

Sand blast finish stainless steel

Car side panel
(Side panel)

Sand blast finish stainless steel

Car side panel
(Rear panel)

Sand blast finish stainless steel
and Mirror finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (MID-833)

COP

COP-G1L-57B

Indicator

5.7inch LCD

Handrail

Stainless steel round type hand rail

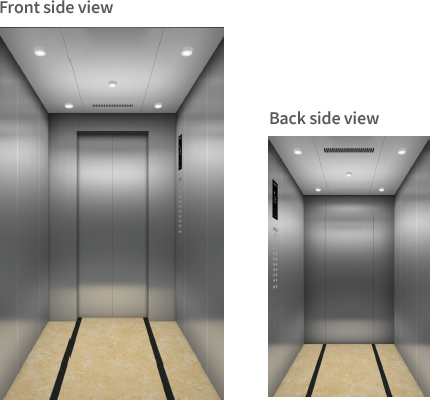

OPTIONAL TL-S2

TL-S2

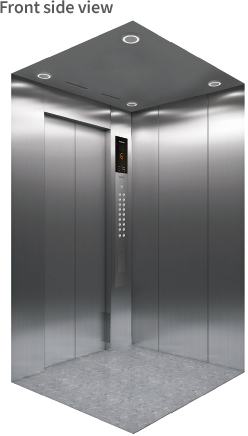

STANDARD

TL-S2
Ceiling design

TL-S2

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (TSF-1B)

COP

FCOP-G1NL

Indicator

7.0 inch LCD segment

Handrail

Nil

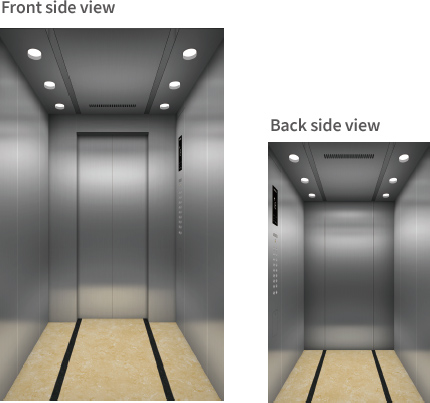

OPTIONAL TL-S1

TL-S1

OPTIONAL

TL-S1
Ceiling design

TL-S1

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (TSF-1B)

COP

FCOP-G1NL

Indicator

7.0 inch LCD segment

Handrail

Nil

STANDARD SL-P1

SL-P1

STANDARD

SL-P1
Ceiling design

SL-P1

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (MID809)

COP

POP-G1NL

Indicator

7.0 inch LCD segment

Handrail

Nil

OPTIONAL DLC-1

DLC-1

OPTIONAL

DLC-1-1
Ceiling design

DLC-1

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (MID809)

COP

POP-G1NL

Indicator

7.0 inch LCD segment

Handrail

Nil

OPTIONAL SL-3

SL-3

OPTIONAL

SL-3
Ceiling design

SL-3

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Nil

Car door

Hairline finish stainless steel

Car floor

Vinyl tile (MID809)

COP

COP-G1N

Indicator

LED Dot matrix (Orange color)

Handrail

Nil

STANDARD SL-1

SL-1

STANDARD

SL-1
Ceiling design

SL-1

Car side panel
(Return panel)

Hairline finish stainless steel

Car side panel
(Side panel)

Hairline finish stainless steel

Car side panel
(Rear panel)

Hairline finish stainless steel

Kick plate

Hairline finish stainless steel

Car door

Hairline finish stainless steel

Car floor

Marble tile (MID-809)

COP

COP-G1L-57B

Indicator

5.7 inch LCD

Handrail

Stainless steel round type hand rail

Remark

Applies to models with a capacity of 1150kg or more.

OPTIONAL SL-V1

SL-V1

OPTIONAL

SL-V1
Ceiling design

SL-V1

Car side panel
(Return panel)

Painted steel panel (62YS)

Car side panel
(Side panel)

Painted steel panel (62YS)

Car side panel
(Rear panel)

Painted steel panel (62YS)

Kick plate

Nil

Car door

Painted steel panel (62YS)

Car floor

Vinyl tile(MID809)

COP

COP-G1N

Indicator

LED Dot matrix (Orange color)

Handrail

Nil

Remark

Applies to models with a capacity of less than 1050kg and fewer 14persons.

OPTIONAL Extension Specifications for Ceiling Design

Variations can be expanded by adding 5 types (A to E) of patterns to 6 types of ceiling design.
The combination of ceiling design and patterns can change the overall image of the internal cage design.

※Note: The pattern can be rearranged

Patern A for DLX-22
Patern B for DLC-1
Patern C for DLX-24
Patern D for DLX-31
Patern E for DLX-21

Installation of Emergency exit of car ceiling



The gate of the rescue passenger from the elevator that has stopped in an emergency.
It can be opened after unlocking from the outside.
Please contact us for details as it will be a layout plan of the car ceiling design.

※Note: Car design TL-1, TL-S1, TL-S2, DLX-27, PRM-2 are not applicable of "Emergency exit"

Image sample of car design: DLX-24 Rescue exit : w500mm, d400mm

LED Lighting

Under equal brightness, LED lighting system only consumes 10% of electrical with comparison of an incandescent lamp and 50% of an fluorescent lamp. (part of ceiling)

SL-V1

Ventilation

*Adopted when not applying Kick-Plate

SL-V1
