Toshiba Standard Type ESCALATOR < TG Series >
An Original Product Made In Japan
Toshiba will provide escalators for overseas markets as original models that maintain the high quality, safety, and energy-saving performance supplied to Japan.
Toshiba is working on research and developments to ensure safe and secure use of escalators, such as our proprietary "Soft Front Edge Step."
We will continue to be your trusted brand by providing products and services that satisfy our customers.
Variations
S type
Products with basic specications
D type
Products with optional specications
（Adopted Balustrade lighting, Comb lighting,
Step lighting and Skirt guard lighting.）
Handrail (Eight color variations)
Select the most suitable color from eight(8) color variations to match the building use and design concepts
Initiatives for Preventing Injuries and Accidents
"Soft Front Edge Steps" for Reducing Risk of Injury in Case of Falling
The risk of minor head injury in the case of falling is reduced by about 50% compared with steps with no cushioning material. (Based on research by Toshiba)
Detail of demarcation line of step is as below the image view.
Shock absorbing material on the front edge of the step
Shape for preventing entanglement
Experiment in which a drinking glass was dropped from a height of 0.5m onto the front edge of the step The cushioning material absorbs the shock. (Test result by Toshiba)
TOSHIBA ESCALATOR safety devices
Skirt Brush Deflector STANDARD
To prevent accidents where objects get caught or entangled between the steps and skirt guard panel, the "skirt brush deflector" can be installed to cover the entire skirt guard panel.
To prevent accidents where objects get caught or entangled between the steps and skirt guard panel, the "skirt brush deflector" can be installed to cover the entire skirt guard panel.
Inlet Brush DeflectorSTANDARD
To prevent accidents where objects become entangled in the handrail inlet, the inlet is located at a higher position, and a brush-type deflector is installed on the handrail inlet.
Operating PanelSTANDARD
A large, colored emergency stop button and key switches are placed next to the front skirt where they can be easily operated.
Kindly Navigating Passengers Operation Monitor ESNAVIOPTIONAL
The operation monitor ESNAVI displays the moving direction of the escalator, etc. During energy saving operation or low-speed/stop standby, it displays "ECO" alternating with the moving direction to emphasize its energy saving operation. When a safety device is activated, it indicates the activated safety device.
Adopting LED lightings
New: LED Balustrade lightingOPTIONAL
The latest LED slimline lighting is adopted for balustrade lighting. The LED slimline lighting, which extends from the inlet in a circular pattern, accentuates the design of the escalator.
- The LED lighting has daylight color（White color）. Optional warm color （ Orange like color） is also available.

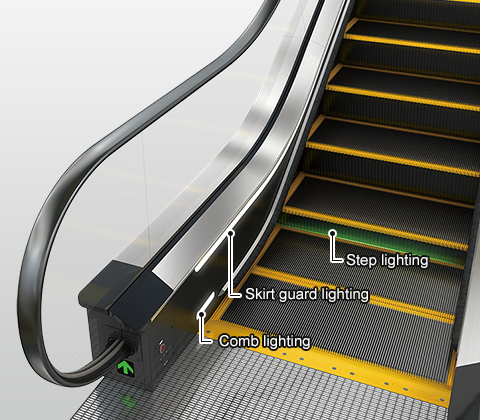

Skirt guard lightingOPTIONAL
The line lighting built into the skirt guard gently illuminates the footing, adding accents of illumination to the escalator.
Comb lightingOPTIONAL
It illuminates the landing to alert passengers.
Step lightingOPTIONAL
It illuminates the border between steps to make it visible and support passengers in riding on the escalator.
Handrail Sterilization DeviceOPTIONAL
It sterilizes the handrail by directly irradiating it with ultraviolet light. The sterilization device is built into the main body of the escalator, eliminating the concerns about getting a hand or finger caught in the device. In addition, stickers such as "UV STERILIZED" and "HOLD THE HANDRAIL" are included, which will help improve safety by encouraging passengers to use the handrail.
Energy Saving
31% Energy reduction

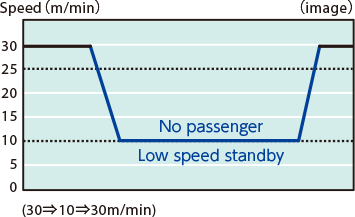

Low-speed standby operationOPTIONAL
If the passenger is not using the escalator, it slows down at the speed of 10m/min, and when the sensor detects the passenger, it accelerates to the normal operating speed of 30m/min.
36% Energy reduction
Low-speed / stop standby operationOPTIONAL
If there is no passenger, low-speed standby operation is activated and after a certain time of period, the escalator stops completely. When the sensor senses the passenger, it accelerates to normal operation speed again at the speed of 30m/min.
Method of comparing power consumption
Comparison between escalator without inverter drive control and the escalator with the following function (standard escalator S1000 type, 30deg, floor height of 4.3m (no lightings), driving time of 12hours per one day.)
• Low-speed standby operation
• Low-speed / stop standby operation
• Stop standby operation
Low-speed standby : six hours
Low-speed standby : three hours Stop standby : three hours
Stop standby : six hours
Environmental issues
Toshiba Group and the SDGs
The main plank of the "Toshiba Group Basic Commitment" is "Committed to people, Committed to the Future.". This expresses Toshiba Elevator and Building Systems is unwavering determination to contribute to the development of society through its business, and is consistent with the direction of the SDGs, which aim to realize a sustainable society. Acting in good faith in our daily activities, and with a passion to make the world a better place, looking to the future beyond the next generation, and to create that future with our stakeholders-inspired by these ideas, Toshiba Elevator and Building Systems has and will continue to bring together the creativity and technological capabilities it has cultivated to confront social issues that are becoming more complicated and serious, and to turn on the promise of a new day.
Note：Toshiba Elevator and Building Systems is working on business activities by extracting 11 items that can be promoted from all 17 types of SDGs goals.
